UpdraftPlus Restore Error 504: Find the Timeout and Restore Safely

If you’re trying to restore a backup of your site and UpdraftPlus displays the UpdraftPlus restore error 504, the request has taken longer than one part of the server connection allows. This can be worrying, but a 504 is a timeout symptom, not proof that your backup is corrupt.

This guide will help you identify the cause and restore your site safely. You’ll learn how to check for large archives, low temporary disk space, busy hosting, security conflicts, slow remote storage, and performance limits set by PHP, the web server, or a proxy.

With the right checks, you can address the underlying timeout instead of repeatedly restarting a restore that is likely to fail.

What the 504 means

A 504 is a 504 gateway timeout response from a server or gateway waiting for another service. It means one part of the request did not finish in time, but it does not identify the failing part or prove that the backup is corrupt.

During a restore, WordPress may download an archive, unpack it, copy files, import the database, and update the site. PHP runs these tasks on the server. PHP-FPM, a service that manages PHP requests, and a web server or reverse proxy can impose separate limits.

Protect the backup before retrying

Repeated retries can overwrite useful log entries or leave files and database records from different restore points. Protect your evidence and keep a copy you can return to first.

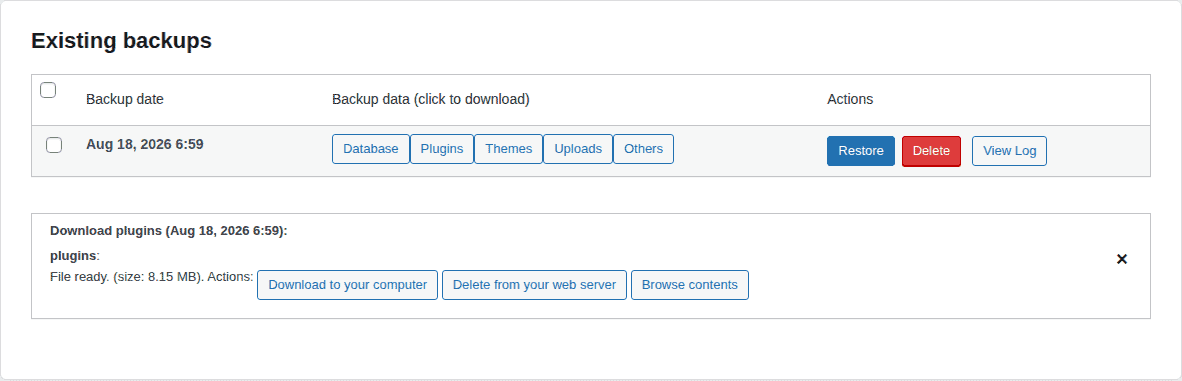

• Preserve every backup archive first: Keep the original files in remote storage and copy locally stored files to another safe location. If the backup is split into several archives, confirm that every part is present.
• Save the restore log before refreshing: Download or copy the latest UpdraftPlus log. Record the time of the error and its time zone so your host can match it to server logs.
• Check the current site state carefully: Test the homepage, WordPress admin, posts, media, forms, and checkout if the site sells online. If the restore changed part of the site, make a fresh copy or ask the host for a snapshot before continuing.
• Pause unrelated changes for now: Do not update plugins, themes, or WordPress until you have captured the logs. New changes can make the original failure harder to trace.

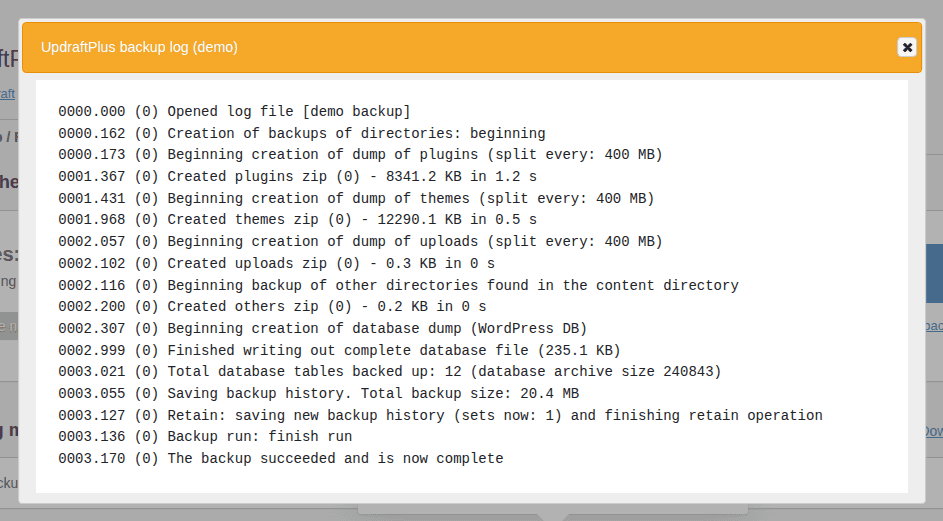

Find the failing part in the log

The 504 code alone is too broad to diagnose the restore. The UpdraftPlus log is more useful because it shows the component and last operation reached. You can usually find it in wp-content/updraft or the plugin’s log view. Save a copy before retrying, then look for downloading, extracting, importing, copying, renaming, or deleting.

Use the last clear log entry to choose the next check:

• When the log ends on files or uploads: Check temporary disk space, file-count limits, file permissions, which control whether the server may read or change files, storage speed, and the time allowed for the request.
• When the log ends on the database: Check available memory, database-server load, and server logs from the same timestamp.
• When the log ends on a plugin or theme: Check file permissions, a security plugin, or a host security rule that may have stopped the request.
• When no WordPress error appears: Ask the host to check PHP-FPM, the web server, and any service in front of the site. These services can end the request without leaving a WordPress error.

If WordPress debugging is enabled, check its log for an application error. An empty WordPress log does not clear the server. TeamUpdraft’s database-restore guidance recommends checking server-level logs for restore failures. Give the host the exact time and the UpdraftPlus log instead of asking for a general settings change.

Check space and server limits

Check temporary disk space

The compressed backup size is not the amount of space a restore needs. A restore may need room for the downloaded archive, expanded files, temporary copies, and the existing site at the same time. The UpdraftPlus restore guidance explains this temporary-space requirement. A full storage quota, the account’s space limit, or a file-count limit can also stop a restore even when the hosting panel shows some free space.

• Check the whole hosting account first: Review account space, the temporary folder, the file-count limit, and the database quota in the hosting panel. Ask the host to verify them if the panel is unclear.
• Clear only confirmed restore leftovers: If UpdraftPlus or your host identifies old restore folders, use the Delete old folders action or follow the host’s instructions. Never remove the only copy of a backup while trying to make space.
• Confirm remote files can be downloaded: A remote-storage delay, expired connection, firewall, or security plugin can interrupt the archive before extraction begins. If the log shows that the restore never got past downloading, restart your network connection or try a stable alternate connection once. That can clear a client-side or remote-transfer problem, but it will not fix a PHP, PHP-FPM, web-server, or proxy timeout.

TeamUpdraft’s uploads-restore guidance gives an example where an account had 121.8 MB free and was 95.9% full. That example shows why space matters. It is not a minimum requirement for every site.

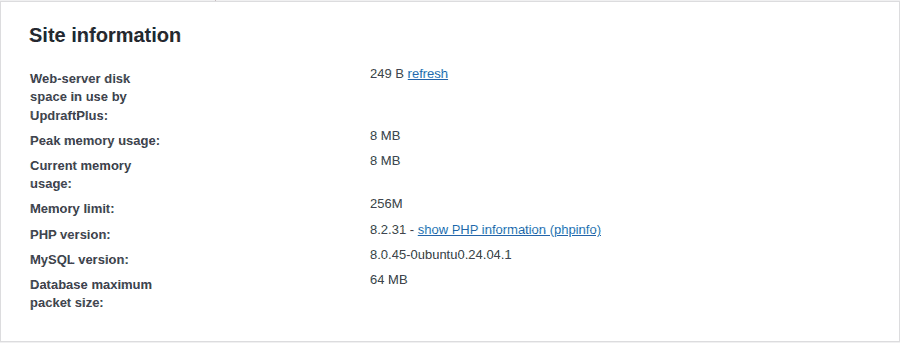

Check the effective time and memory limits

A large restore uses processor time, memory, storage, and database capacity. On shared hosting, another busy task can make a healthy backup exceed the request window. Changing memory_limit or the maximum execution time setting helps only when that setting actually ended the request.

Ask the host which limits applied to the failed request. These can include the PHP memory limit, the maximum PHP run time, the PHP-FPM request limit, and the web-server or proxy timeout. A setting changed in a local configuration file may not affect the service that actually handled the restore.

If the logs show that PHP stopped the task, the host may increase the relevant limit for a controlled retry. If PHP-FPM or a proxy ended the request first, changing PHP’s run time will not help. Do not copy old examples such as a 500 MB memory limit or a 120-second run time without evidence. The right values depend on the host and the size of the restore.

Retry with less work per request

After preserving the site, checking the log, and fixing the confirmed bottleneck, retry carefully.

• Use a staging copy or host snapshot first: Staging is a private WordPress test site used for testing. It gives you a safer place to confirm the backup before changing the live site.

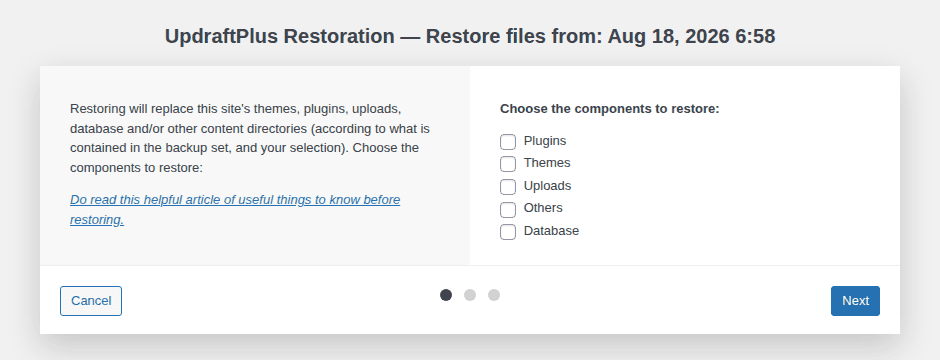

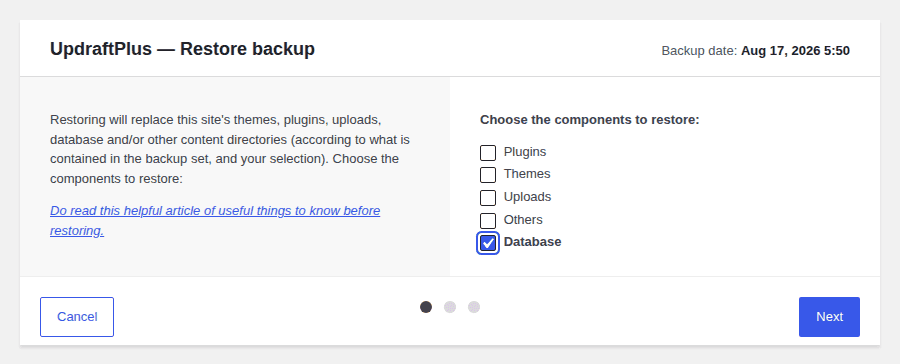

• Restore only what the incident needs: If you need a database correction, do not begin with a large media archive. Smaller components place less work in one request.
• Restore large components separately: Complete the database, files, plugins, themes, and uploads in a way that matches the backup and the damage. Watch the log after each component.

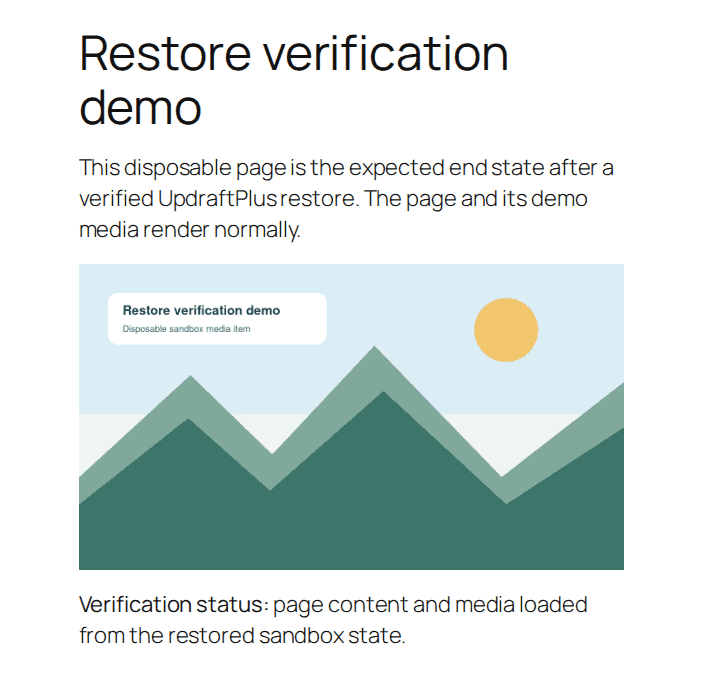

• Verify the site after each successful restore: Check the homepage, admin area, representative content and images, links, forms, and payment flows. A component can finish while the site still contains files and database data from different dates.
• Stop after another unexplained failure: Keep the new log and ask the host or UpdraftPlus support to inspect it. Blind retries can make a partial restore harder to unwind.

Restoring components separately can lower the work per request, but it can also create a mixed-version site if the process stops halfway. Keep a safety copy until every required component is complete and tested.

Use manual restoration as a fallback

Manual backup and restore is an option when the dashboard request keeps timing out and you have all the backup files. UpdraftPlus’s manual restore guidance covers split, compressed, and encrypted archives. It is not automatically safer because file transfers, extraction, permissions, site addresses, and database replacement create new failure points.

• Choose a safe destination first: Use staging, a new server, or a host snapshot whenever possible. Confirm a complete backup of the current site before replacing anything.
• Confirm the archive format first: UpdraftPlus backups may include split file archives, compressed database files, or encrypted files. Do not assume the database backup is a plain SQL file, a common database format.
• Upload files with a transfer tool carefully: FTP or SFTP can copy the backup into the WordPress files. File Manager may have upload and extraction limits, especially on a large site.
• Import the database only after review: phpMyAdmin, a web-based database manager, can import the database archive. Replacing or dropping existing tables deletes current data, so do it only with a verified safety copy and the correct database.
• Check the restored site settings: On a new server, confirm database login details, site addresses, file permissions, text encoding, and collation, which controls how the database stores and compares text.

Know when to contact support

Contact the hosting provider when the log does not explain the timeout, the account is out of resources, or the request ended at PHP-FPM, the web server, a proxy, or a security layer. Ask for a review of the exact timestamp.

Contact UpdraftPlus support when the restore always stops at the same archive or component, a split file is missing, an archive is encrypted, or the host confirms that the request was allowed to run. Support can help distinguish a damaged backup from a server-side interruption.

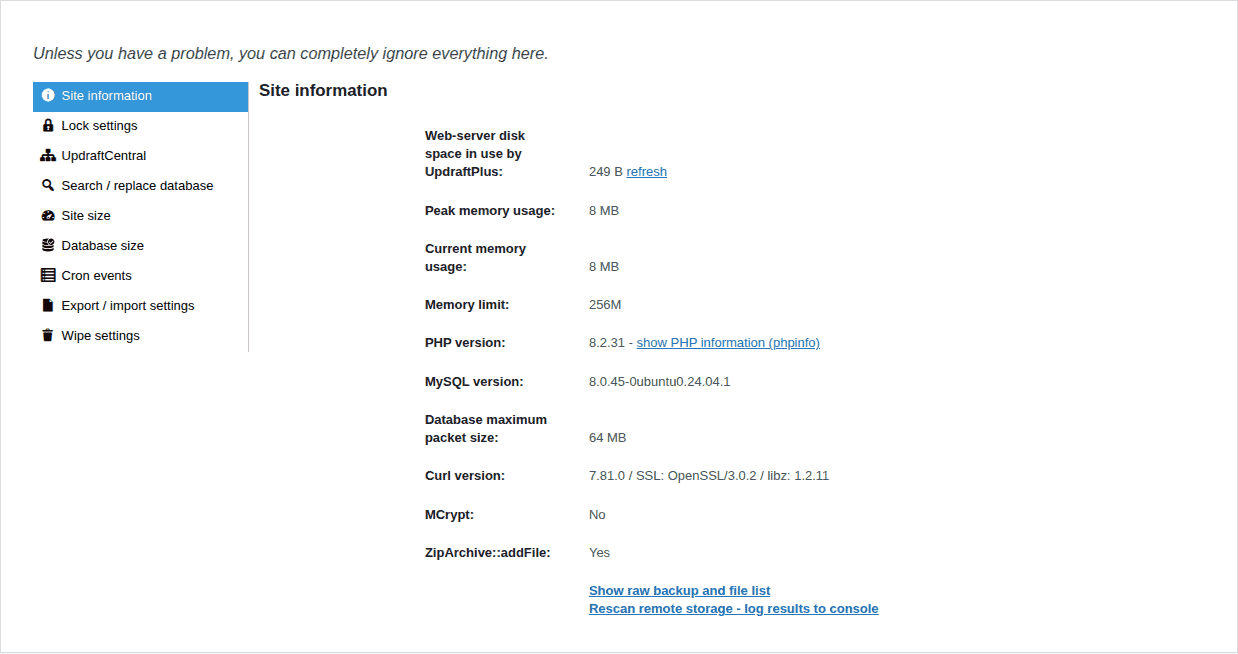

Send support teams:

• Include the exact failure time: Add the time zone and the full 504 message.

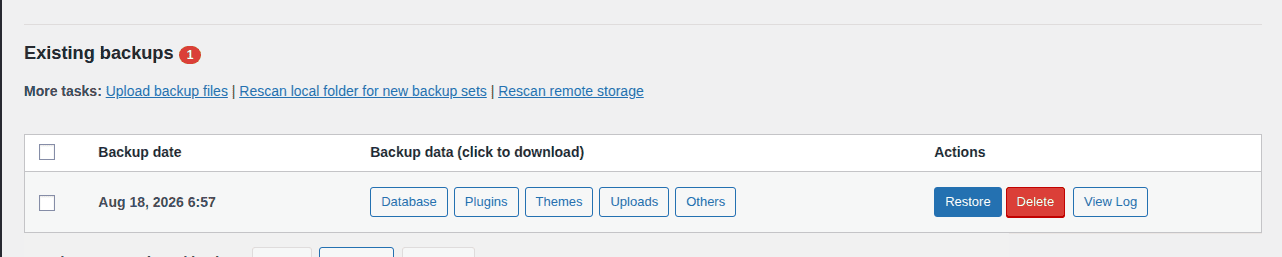

• Attach the restore evidence: Include the UpdraftPlus log, the last component reached, and any WordPress debug entry.
• Describe the backup files: List the backup date, archive names, split parts, compression, and encryption.
• Show the server condition: Include available disk space, file-count or storage-limit warnings, and PHP or server log messages from the same time.
• Summarize the attempted fixes: State what changed, what completed, and whether the site is currently partial or functional.

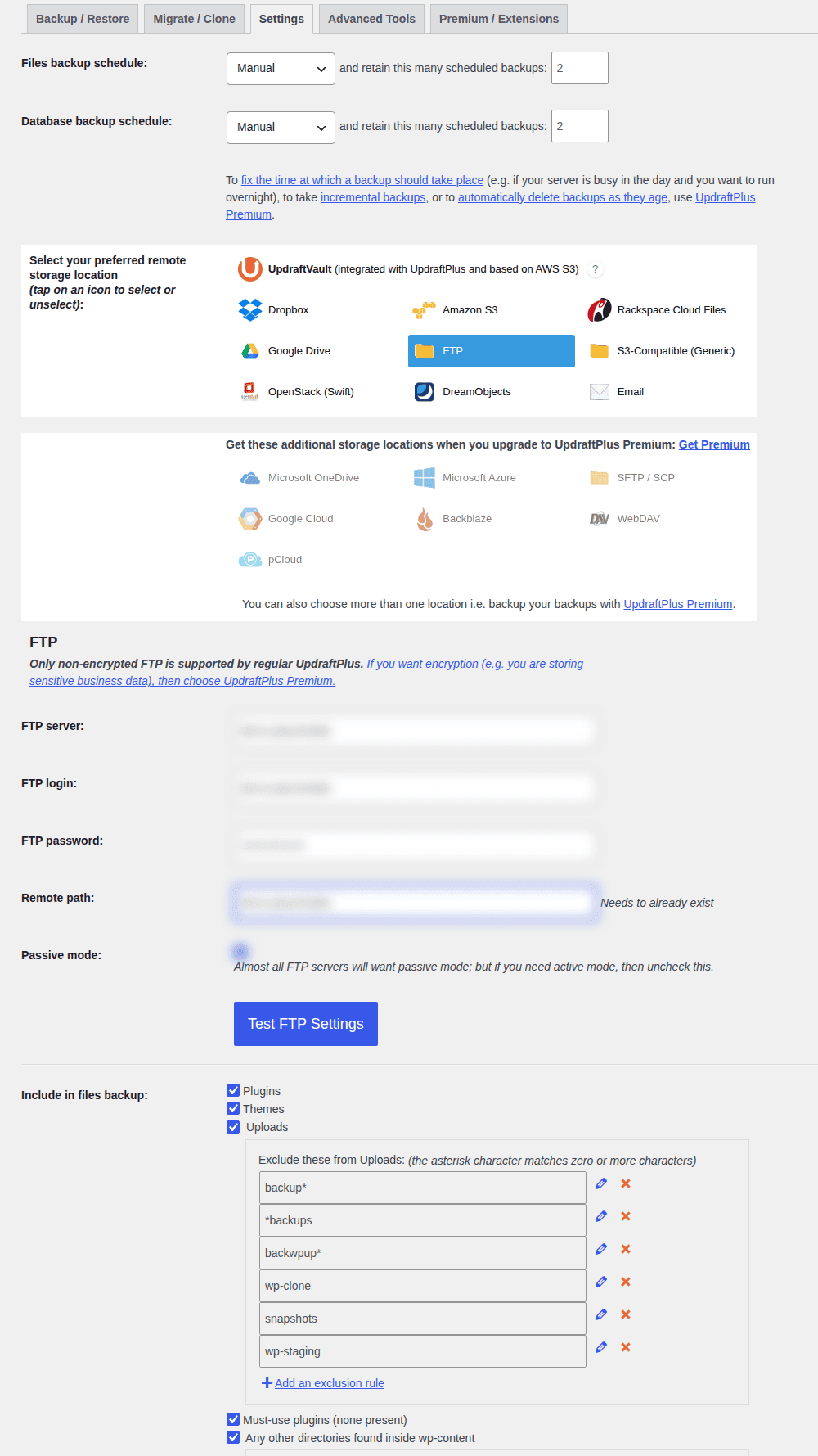

Prevent another restore timeout

Once the site is stable, make the next restore easier to recover:

• Keep an independent backup copy: Store at least one usable copy away from the live server and follow a schedule for when to take a website backup.

• Check available space before emergencies: Review disk space, file-count limits, and database capacity before large backups and restores.
• Test critical backups on staging: A test restore can reveal missing archive parts, permissions problems, or incompatible settings before a live incident.
• Update in a controlled window: Keep WordPress, UpdraftPlus, and related security maintenance tools compatible, but preserve a fresh backup before updating.
• Plan a large-site recovery path: Arrange host-assisted recovery or another method that does not depend on one dashboard request. Very large sites may not fit safely into one request.

If you want a different backup plugin workflow after the incident is contained, BlogVault stores backups separately from the WordPress site and provides its own restore process. That separation can help when the live server is under pressure. It is an alternative recovery path, not a promise that every restore failure is impossible.

Conclusion

An UpdraftPlus restore error 504 is a timeout to investigate, not proof that your backup is unusable. Protect the backup and current site, read the restore log, check temporary space, and match any server change to the layer that actually stopped the request.

If a careful retry still fails, use a safe manual restore or contact your host and UpdraftPlus with the exact log and timestamp. A tested off-server backup and a planned recovery path can turn the next restore from an emergency into a controlled task.

FAQs

Why is UpdraftPlus showing a 504 during restore?

The restore request exceeded a time limit somewhere between WordPress, PHP, the hosting server, remote storage, or a proxy. Large archives, low temporary disk space, high server load, security conflicts, and missing or slow server services are common causes.

Does a 504 mean that my backup is corrupt?

No. A 504 only shows that the request timed out. Read the restore log and check every archive part. If the restore stops at the same file each time, ask UpdraftPlus support to assess that archive.

Can increasing PHP memory or run time fix the error?

Sometimes, if that effective limit stopped the restore. It cannot create disk space, repair a missing archive, or override a shorter PHP-FPM, web-server, or proxy limit. Ask the host which limit applied before changing it.

Is it safe to retry the restore?

Retry only after preserving the backup, current site, log, and a copy you can restore from. Use staging or a snapshot when possible, restore smaller components, and verify the site after each component. Stop if the failure remains unexplained.

Can I restore UpdraftPlus manually after a 504?

Yes, if every required backup file is available. Manual recovery may use a fresh WordPress installation, file transfer, archive extraction, and database import. It can delete current data, so use a verified safety copy and get help before changing the live database.
